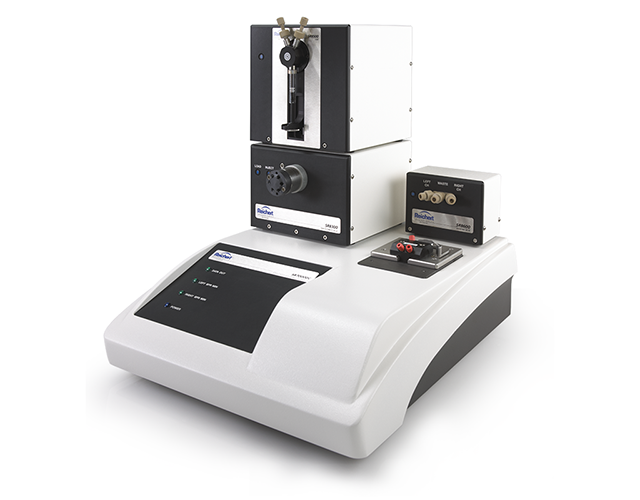

The SR7000DC SPR System provides SPR technology for label-free biomolecular interaction analysis.
Our SR7000DC SPR System is an innovative label-free detection system offering unparalleled flexibility and remarkable sensitivity for biomolecular and biochemical analysis. Designed for breakthrough discoveries, it is component-based and cost-effective; upgrade or add instruments at any time. The system is low maintenance, using off-the-shelf fluidics.
Use our exclusive collection of flow cells with the SPR spectrometer and perform SPR in combination with electrochemistry, fluorescence, photochemistry, mass spectrometry and liquid chromatography.
Configure the SR7000DC System with these components: the SR7000DC SPR spectrometer; autosampler, for automated injections, or the semi-automatic injector valve; diverter valve, and programmable syringe pump.
The SR7000DC SPR System is ideal for acquiring high quality kinetic, affinity, and thermodynamic data for biomolecular interactions.
Modular component-based design
- Ultimate flexibility for cost-effective biomolecular interaction analysis
- Minimal maintenance requirements with off-the-shelf fluidics
- Low life cycle costs
- All components are purchased separately or as a system providing for easy upgrades.
- User-maintainable with minimal maintenance required, eliminating the need for yearly service contracts.
Alternative configuration
| Technical Specifications: SR7000DC | Measurement channels | 2 | Sample loading | Autosampler or SAV | Temperature range | 10-70°C | Degassing unit | Optional degassing unit | Flow rate range | 1-1000 µL/min with SR8500 pump | 21 CFR Part 11 compliance | yes | Sample volume | With SAV 1-5000 µL with Autosampler 1-1000 µL | Refractive index Resolution | 5x 10⁻⁷ RU | Refractive index range | 1.33 – 1.42 (@780 nm) | Analyte concentration range | 1 mM – 1 pM | Minimum molecular weight detection | > 200 Da | Baseline noise | 0.15 RU RMS @25 µL/min | Baseline drift | 0.01 RU/min | Association rate constant | 10³ – 10⁷ M⁻¹s⁻¹ | Dissociation rate constant | 10⁻¹ – 10⁻⁶ s⁻¹ | Equilibrium dissociation constant | mM – 1 pM | Available flow cells | µ-flow cell, UV-, electrochemical flow cell etc. |
|---|
