Reichert Surface Plasmon Resonance used for kinetic analysis and epitope mapping of monoclonal antibodies

PDF download

Salmonella Typhimurium (S. Typhimurium) is the most common cause of foodborne illness worldwide but can be difficult to characterize. Researchers at Tennessee State and Auburn Universities have addressed this issue in their 2019 article published in the journal Antibodies. Both Surface Plasmon Resonance (SPR) and enzyme-linked immunosorbent assays (ELISA) have been used for this type of analysis, but the sensitivity and reliability of the assays have been problematic. These researchers are working to improve this situation by characterizing monoclonal antibodies (Mabs) used in these assays more thoroughly. They employed a Reichert SR7500DC to characterize S. Typhimurium interactions with various antibodies.1

Looking more closely at the S. Typhimurium bacterium, one finds it has 6–10 flagella with 3 substructures. One of the substructures, the filament, extends into the extracellular space and is comprised of a single species of protein called flagellin. Further, S. Typhimurium has two non-allelic genes that encode two antigenically distinct flagellins, and monoclonal antibodies can bind to one or the other depending on the specificity of the antibody. The development of numerous immunoassays (ELISA and SPR) based on flagellin, including the current SPR research outlined here, have been made straightforward because: (a) a number of different anti-flagellin antibodies are available, and (b) that Salmonella flagellin can be extracted fairly easily.1



An anti-flagellin antibody was immobilized on a dextran chip using standard amine coupling. Unfilled sites were blocked with BSA. Flagellin was injected over the surface and captured and then binding to either one Mab, or two Mabs in a row, was monitored to determine kinetics and carry out epitope mapping, respectively.

A sandwich type assay has been employed to study S. Typhimurium. The capture antibody used is Mab 1E10. This was chosen because MAb 1E10 was found to have a different epitope compared to the rest of the antibodies that were tested. For kinetics alone, flagellin was captured and then four concentrations of each antibody were injected over the surface and the curves were globally fit to obtain rate constants.

Next, epitopes were determined. After flagellin capture, an initial antibody followed by a second antibody were injected to determine whether or not inhibition occurred. In addition, responses were quantified by looking at Bmax ratios.1


Measurements were carried out on a SR7500DC/Reichert 2SPR instrument with a dextran sensor ship and PBST as running buffer at a flow rate of 20 μL/min (25 °C). The capture antibody MAb 1E10 was amine coupled to the sensor chip in immobilization buffer of pH 5.2. Subsequently Salmonella flagellin was injected over 4 minutes with 6 minutes of dissociation. For kinetics different concentrations of monoclonal antibody 1 were injected over the Salmonella flagellin with an association time of 4 minutes and 6 minutes of dissociation. For epitope mapping first flagellin and then 2 different Mabs in a row were injected each with 4 minutes of association time and 4 minutes of dissociation time). After each cycle the assay was regenerated with a 4 minute injection of 10 mM Glycine-HCl, pH 3.0.


Binding of single antibodies to the flagellin was, in general, high affinity with KD values ranging from 26.3 to 325 pM (see example in Figure 1).1

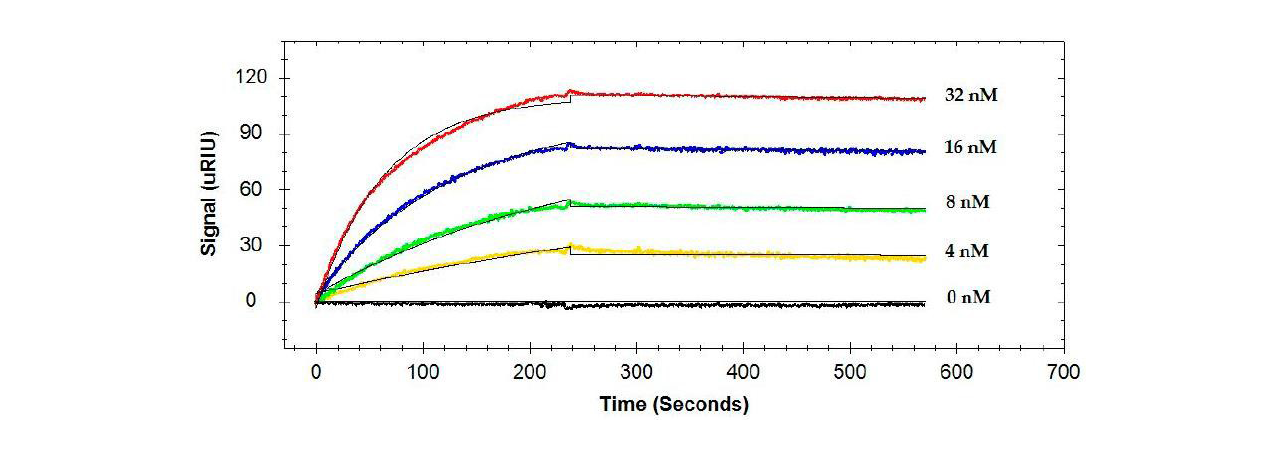

Figure 1. Results show four concentrations of MAb 7E3 (4, 8, 16 and 32 nM) binding to flagellin which was captured over immobilized MAb 1E10. The rate constants (1:1 model) are ka 4.88 x 105 M-1 s-1 , kd 1.03 x 10-4 s-1 and KD 219 pM.1

For epitope testing, when different combinations of two antibodies were injected consecutively, some antibodies had no effect on each other (bound to different sites as in Figure 2 (a)) and others inhibited (had a shared binding site as in Figure 2 (b)) or enhanced the response of the secondary antibody.1

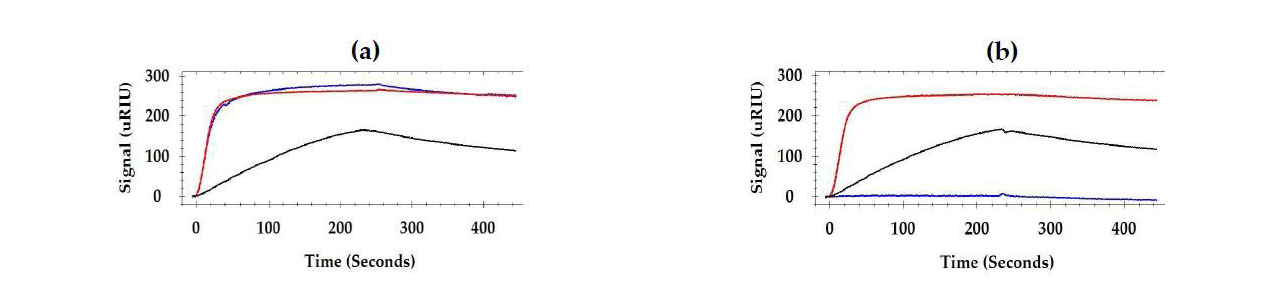

Figure 2. Examples of epitope testing (a) black curve is flagellin captured over MAb 1E10. MAb 1C8 (red curve) was injected next and then MAb 3H8 (blue curve). (b) black curve is flagellin captured over MAb 1E10. MAb 1C8 (red curve) was injected next and then MAb 7E3 (blue curve).1



  1. F1. Devendra Bhandari, Fur-Chi Chen, Shreya Hamal and Roger C. Bridgman, “Kinetic Analysis and Epitope Mapping of Monoclonal Antibodies to Salmonella Typhimurium Flagellin Using a Surface Plasmon Resonance Biosensor”, Antibodies, 2019, 8(1), 22; doi:10.3390/antib8010022
